Radial spherical plain bearings SILKB20F

Bearing number : SILKB20F

Brand : SKF

Bore Diameter (mm) : 20

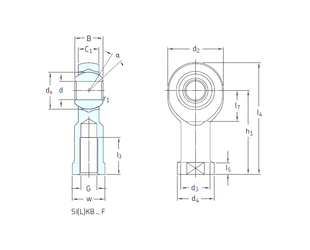

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

d2 max. - 51 mm

d3 - 27,5 mm

d4 max. - 37 mm

dk - 34,9 mm

h1 - 77 mm

l3 min. - 30 mm

l4 max. - 103 mm

l5 - 10 mm

l7 min. - 25 mm

r1 min. - 0,3 mm

B - 25 mm

C1 max - 18 mm

w - 30 Tolerance h14

Thread (G) - M20x1,5 Tolerance 6H

Angle - 14 °

Weight - 0,38 Kg

Basic dynamic load rating (C) - 31 kN

Basic static load rating (C0) - 50 kN
