Radial spherical plain bearings SILQG 80 ES

Bearing number : SILQG 80 ES

Brand : SKF

Bore Diameter (mm) : 80

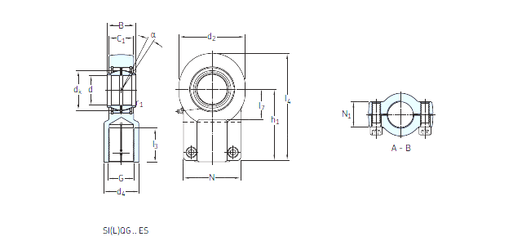

Bearing dimensions and specification in SKF catalogue:

d - 80 mm

d2 max. - 170 mm

d4 max. - 91 mm

dk - 105 mm

h1 - 180 mm

l3 min. - 86 mm

l4 max. - 272,5 mm

l7 min. - 77 mm

r1 min. - 1 mm

B - 80 mm

C1 max - 68 mm

N max - 150 mm

N1 max - 50 mm

Thread (G) - M 64x3 Tolerance 6H

Angle - 4 °

Weight - 14,5 Kg

Basic dynamic load rating (C) - 400 kN

Basic static load rating (C0) - 600 kN
