Y-bearing short base plummer block units SYFJ 30 TF

Bearing number : SYFJ 30 TF

Size (mm) : 30x48x29

Brand : SKF

Bore Diameter (mm) : 30

Outer Diameter (mm) : 48

Width (mm) : 29

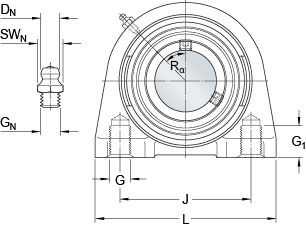

Bearing dimensions and specification in SKF catalogue:

d - 30 mm

A - 48 mm

A1 - 29 mm

B - 38.1 mm

H - 84.5 mm

H1 - 42.9 mm

H2 - 10 mm

J - 66 mm

L - 94 mm

s1 - 22.2 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 3 mm

Rα - 45 °

Basic dynamic load rating - C - 19.5 kN

Basic static load rating - C0 - 11.2 kN

Fatigue load limit - Pu - 0.475 kN

Limiting speed - 6300 r/min

Calculation factor - f0 - 14

Weight - 0.95 kg

Housing thread for attachment bolts - G - M14

Thread length - G1 - 18 mm

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFJ 506

Bearing - YAR 206-2F
