Bearing units SYH 1.11/16 WF

Bearing number : SYH 1.11/16 WF

Brand : SKF

Bore Diameter (mm) : 42,863

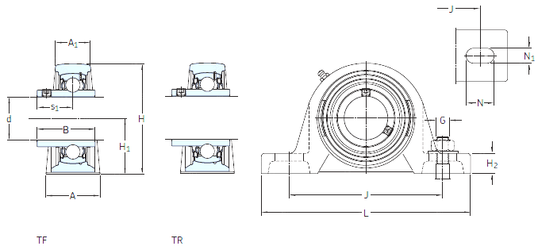

Bearing dimensions and specification in SKF catalogue:

d - 42,863 mm

s1 - 34,9 mm

A - 48,3 mm

A1 - 32 mm

B1 - 56,3 mm

H - 105,5 mm

H1 - 52,4 mm

H2 - 20 mm

J - 143,7 mm

L - 187 mm

N - 22,7 mm

N1 - 14 mm

Thread (G) - 12

Weight - 2,65 Kg

Basic dynamic load rating (C) - 33,2 kN

Basic static load rating (C0) - 21,6 kN

Fatigue load limit (Pu) - 0,915

Limiting speed - 4 300 r/min
