Bearing units SYH 2.7/16 WF

Bearing number : SYH 2.7/16 WF

Brand : SKF

Bore Diameter (mm) : 61,913

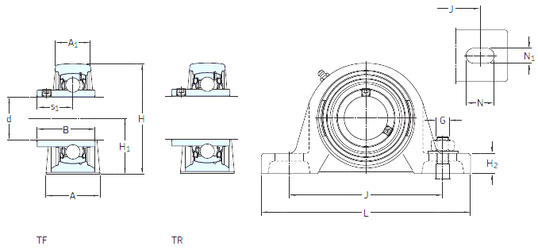

Bearing dimensions and specification in SKF catalogue:

d - 61,913 mm

s1 - 46,7 mm

A - 60 mm

A1 - 42 mm

B1 - 77,8 mm

H - 139,5 mm

H1 - 69,9 mm

H2 - 26 mm

J - 190,5 mm

L - 240 mm

N - 29,1 mm

N1 - 18 mm

Thread (G) - 16

Weight - 4,9 Kg

Basic dynamic load rating (C) - 52,7 kN

Basic static load rating (C0) - 36 kN

Fatigue load limit (Pu) - 1,53

Limiting speed - 3 400 r/min
