Bearing units SYJ 3/4 TF

Bearing number : SYJ 3/4 TF

Brand : SKF

Bore Diameter (mm) : 19.05

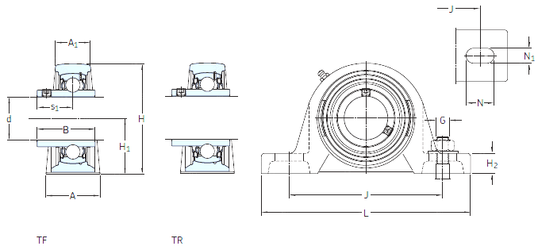

Bearing dimensions and specification in SKF catalogue:

d - 19.05 mm

s1 - 18,3 mm

A - 34 mm

A1 - 23 mm

B - 31 mm

G - 10 mm

H - 65 mm

H1 - 33,3 mm

H2 - 14 mm

J - 97 mm

L - 127 mm

N - 20,7 mm

N1 - 13 mm

Weight - 0,54 Kg

Basic dynamic load rating (C) - 12,7 kN

Basic static load rating (C0) - 6,55 kN

Fatigue load limit (Pu) - 0,28

Limiting speed - 8 500 r/min
