Bearing units SYJ 30 KF+SYJ 506

Bearing number : SYJ 30 KF+SYJ 506

Brand : SKF

Bore Diameter (mm) : 25

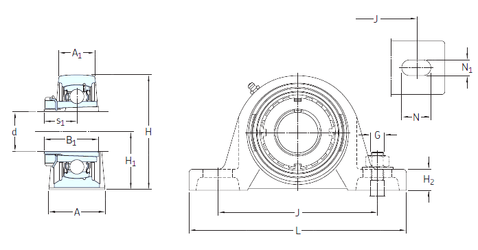

Bearing dimensions and specification in SKF catalogue:

d - 25 mm

s1 - 22 mm

A - 42 mm

A1 - 27 mm

B1 - 38 mm

G - 14 mm

H - 82,5 mm

H1 - 42,9 mm

H2 - 16 mm

J - 118 mm

L - 165 mm

N - 24 mm

N1 - 17 mm

Weight - 0,9 Kg

Basic dynamic load rating (C) - 19,5 kN

Basic static load rating (C0) - 11,2 kN

Fatigue load limit (Pu) - 0,475

Limiting speed - 6 300 r/min
