Y-bearing plummer block units SYJ 35 KF

Bearing number : SYJ 35 KF

Size (mm) : 30x35x46

Brand : SKF

Bore Diameter (mm) : 30

Outer Diameter (mm) : 35

Width (mm) : 46

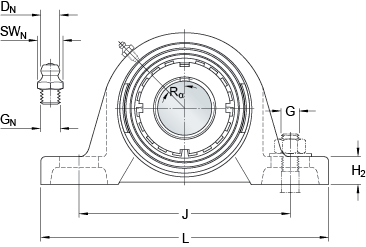

Bearing dimensions and specification in SKF catalogue:

d - 30 mm

d - 35 mm

A - 46 mm

A1 - 28 mm

B1 - 43 mm

H - 93 mm

H1 - 47.6 mm

H2 - 17 mm

J - 129 mm

J - max. - 136 mm

J - min. - 122 mm

L - 167 mm

H - 24 mm

N1 - 17 mm

s1 - 24.8 mm

J6 - 153 mm

J7 - 16 mm

N4 - 4 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 3 mm

Rα - 45 °

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C0 - 15.3 kN

Fatigue load limit - Pu - 0.655 kN

Limiting speed - 5300 r/min

Weight - 1.62 kg
