Bearing units SYJ 35 KF+HA 2307

Bearing number : SYJ 35 KF+HA 2307

Brand : SKF

Bore Diameter (mm) : 30,163

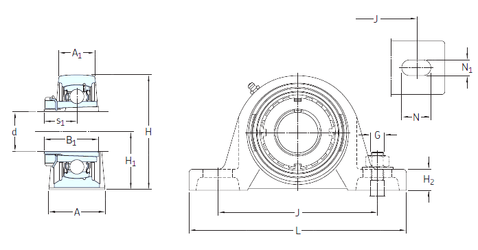

Bearing dimensions and specification in SKF catalogue:

d - 30,163 mm

s1 - 24,3 mm

A - 46 mm

A1 - 28 mm

B1 - 43 mm

G - 14 mm

H - 93 mm

H1 - 47,6 mm

H2 - 17 mm

J - 129 mm

L - 167 mm

N - 24 mm

N1 - 17 mm

Weight - 1,25 Kg

Basic dynamic load rating (C) - 25,5 kN

Basic static load rating (C0) - 15,3 kN

Fatigue load limit (Pu) - 0,655

Limiting speed - 5 300 r/min
