Bearing units TU 55 FM

Bearing number : TU 55 FM

Brand : SKF

Bore Diameter (mm) : 55

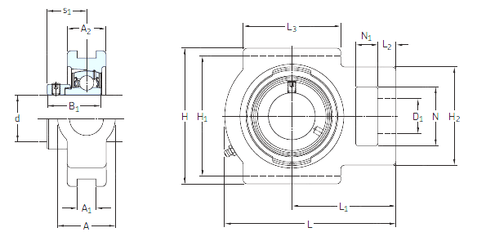

Bearing dimensions and specification in SKF catalogue:

d - 55 mm

L2 - 19 mm

L3 - 95 mm

s1 - 36,4 mm

A - 64 mm

A1 - 27 mm

B1 - 48,4 mm

D1 - 35 mm

H - 146 mm

H1 - 130 mm

H2 - 102 mm

L - 171 mm

L1 - 106 mm

N - 64 mm

N1 - 25 mm

A2 - 41 mm

Weight - 3,85 Kg

Basic dynamic load rating (C) - 43,6 kN

Basic static load rating (C0) - 29 kN

Fatigue load limit (Pu) - 1,25

Limiting speed - 3 600 r/min
