Y-bearings take-up units TUJ 20 TF

Bearing number : TUJ 20 TF

Size (mm) : 20x34x12

Brand : SKF

Bore Diameter (mm) : 20

Outer Diameter (mm) : 34

Width (mm) : 12

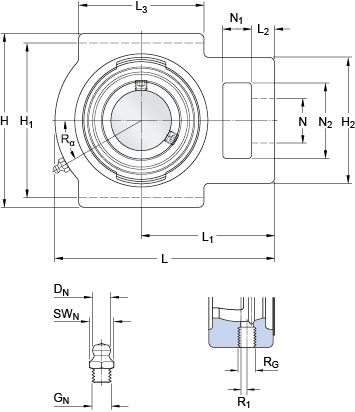

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

A - 34 mm

A1 - 12 mm

A2 - 25 mm

B - 31 mm

H - 92 mm

H1 - 76 mm

H2 - 54 mm

L - 97 mm

L1 - 62 mm

L2 - 10 mm

L3 - 54 mm

H - 19 mm

N1 - 16 mm

N2 - 32 mm

s1 - 18.3 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 2.5 mm

Rα - 30 °

Basic dynamic load rating - C - 12.7 kN

Basic static load rating - C0 - 6.6 kN

Fatigue load limit - Pu - 0.28 kN

Limiting speed with shaft tolerance h6 - 8500 r/min

Mass bearing unit - 0.89 kg

Grub (set) screw - G2 - M6x0.75

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing -
