Radial spherical plain bearings SILKB18F

Bearing number : SILKB18F

Brand : SKF

Bore Diameter (mm) : 18

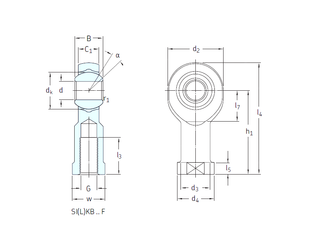

Bearing dimensions and specification in SKF catalogue:

d - 18 mm

d2 max. - 47 mm

d3 - 25 mm

d4 max. - 32 mm

dk - 31,7 mm

h1 - 71 mm

l3 min. - 27 mm

l4 max. - 95 mm

l5 - 10 mm

l7 min. - 23 mm

r1 min. - 0,3 mm

B - 23 mm

C1 max - 16,5 mm

w - 27 Tolerance h14

Thread (G) - M18x1,5 Tolerance 6H

Angle - 15 °

Weight - 0,33 Kg

Basic dynamic load rating (C) - 26 kN

Basic static load rating (C0) - 41,5 kN
