Concentra bearing units SYNT 50 LTS

Bearing number : SYNT 50 LTS

Size (mm) : 50x70x65

Brand : SKF

Bore Diameter (mm) : 50

Outer Diameter (mm) : 70

Width (mm) : 65

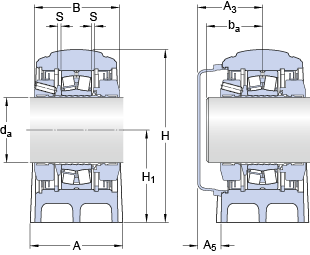

Bearing dimensions and specification in SKF catalogue:

da - 50 mm

A - 70 mm

B - 65 mm

H - 131 mm

H1 - 70 mm

H2 - 28 mm

J - 210 mm

L - 255 mm

H - 24 mm

N1 - 18 mm

S - 2.5 mm

J6 - 234 mm

J7 - 26 mm

N4 - max. - 8 mm

A3 - 62 mm

A5 - 29.5 mm

ba - min. - 34 mm

ba - max. - 55 mm

Basic dynamic load rating - C - 104 kN

Basic static load rating - C0 - 108 kN

Fatigue load limit - Pu - 11.8 kN

Limiting speed - 4900 r/min

Calculation factor - e - 0.24

Calculation factor - Y1 - 2.8

Calculation factor - Y2 - 4.2

Diameter - dm - 70 mm

Basic Designation bearing - 22210 E

Pa - 15 kN

P0° - 190 kN

P55° - 330 kN

P90° - 200 kN

P120° - 130 kN

P150° - 115 kN

P180° - 140 kN

Mass bearing unit - 5.8 kg

Diameter - G - 16 mm
