Concentra bearing units SYNT 70 FTS

Bearing number : SYNT 70 FTS

Size (mm) : 70x90x71

Brand : SKF

Bore Diameter (mm) : 70

Outer Diameter (mm) : 90

Width (mm) : 71

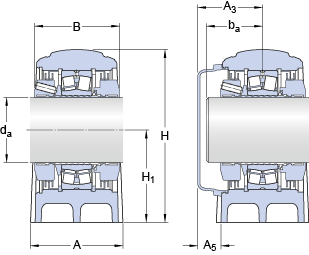

Bearing dimensions and specification in SKF catalogue:

da - 70 mm

A - 90 mm

B - 71 mm

H - 176 mm

H1 - 95 mm

H2 - 32 mm

J - 260 mm

L - 315 mm

H - 28 mm

N1 - 22 mm

J6 - 290 mm

J7 - 32.5 mm

N4 - max. - 8 mm

A3 - 80 mm

A5 - 38.5 mm

ba - min. - 38 mm

ba - max. - 70 mm

Basic dynamic load rating - C - 208 kN

Basic static load rating - C0 - 228 kN

Fatigue load limit - Pu - 25.5 kN

Limiting speed - 3600 r/min

Calculation factor - e - 0.22

Calculation factor - Y1 - 3

Calculation factor - Y2 - 4.6

Diameter - dm - 97.5 mm

Basic Designation bearing - 22214 E

Pa - 20 kN

P0° - 350 kN

P55° - 400 kN

P90° - 240 kN

P120° - 160 kN

P150° - 145 kN

P180° - 215 kN

Mass bearing unit - 11 kg

Diameter - G - 20 mm
