Tapered roller bearings T4CB140

Bearing number : T4CB140

Size (mm) : 140x195x29

Brand : SKF

Bore Diameter (mm) : 140

Outer Diameter (mm) : 195

Width (mm) : 29

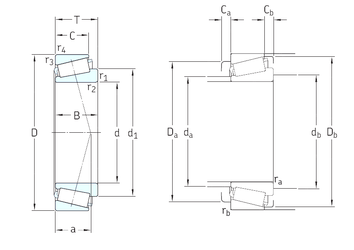

Bearing dimensions and specification in SKF catalogue:

d - 140 mm

D - 195 mm

T - 29 mm

B - 27 mm

C - 21 mm

a - 40 mm

d1 - 165 mm

r1 min. - 3 mm

r2 min. - 3 mm

r3 min. - 3 mm

r4 min. - 3 mm

Ca min. - 5 mm

Cb min. - 8 mm

da max - 151 mm

Da min - 180 mm

Da max. - 181 mm

db min - 154 mm

Db min. - 189 mm

ra max. - 2,5 mm

rb max. - 2,5 mm

Weight - 2,4 Kg

Basic dynamic load rating (C) - 194 kN

Basic static load rating (C0) - 325 kN

Fatigue load limit (Pu) - 33,5

Reference speed - 2200 r/min

Limiting speed - 3200 r/min

Calculation factor (e) - 0,5

Calculation factor (Y) - 1,2

Calculation factor (Y0) - 0,7
